MT 8020 Simulator
High-end Performance
  • CPU
    CPU
    8-Core Intel Xeon, Base Frequency of 3.8GHz

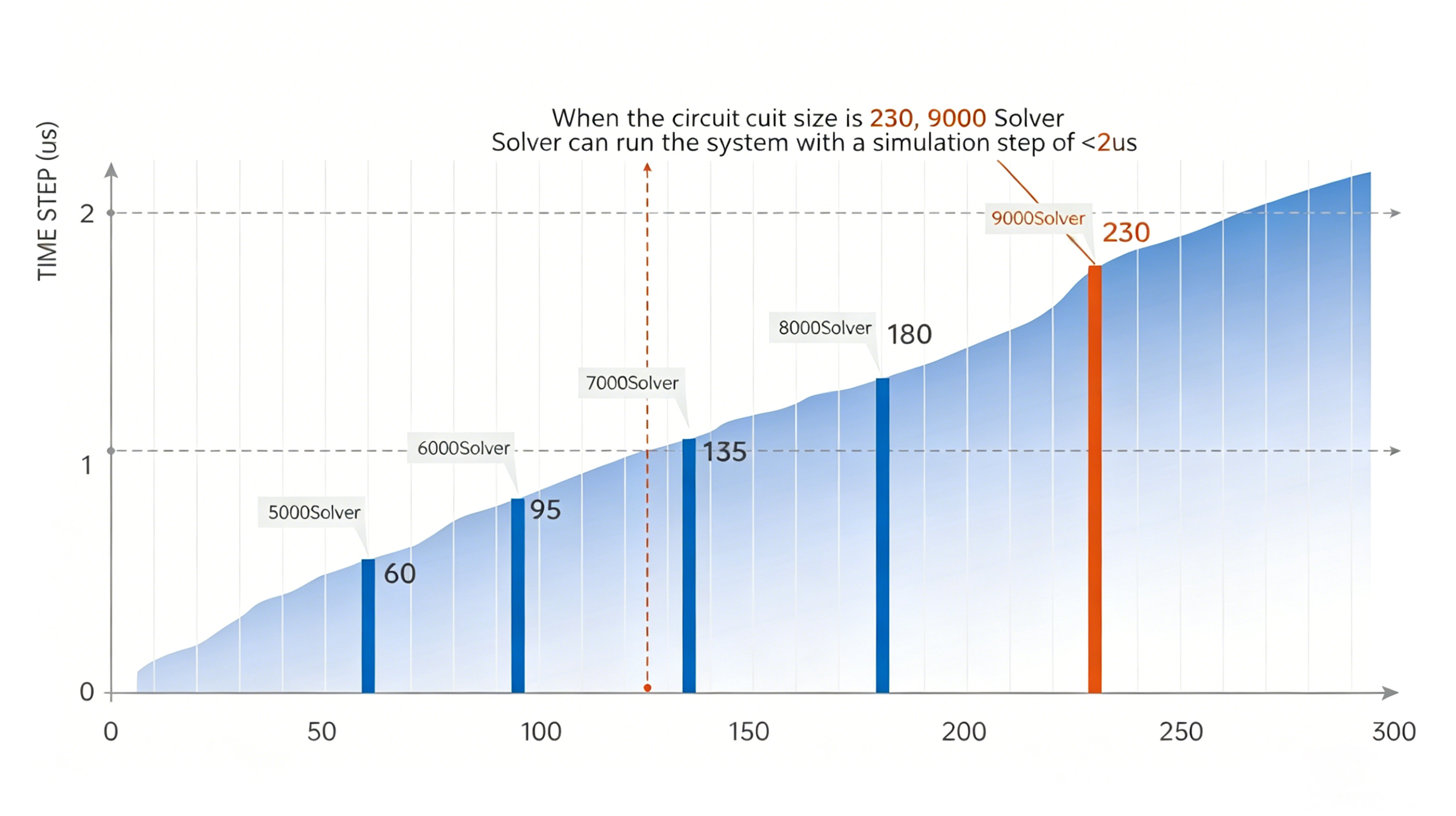

  • FPGA
    FPGA
    Xilinx KU115
  • Customized I/O
    Customized I/O
    Up to 96 digital inputs, 48 analog outputs
  • Fiber Optic Expansion
    Fiber Optic Expansion
    8-channel SFP+ 10Gbps
MT 8020 Simulator
MT 8020 Simulator

MT 8020 Simulator is a high-end performance platform developed by ModelingTech ,based on Intel Xeon CPU and Xilinx UltraScale FPGA, which assists the simulation and testing of renewable energy inverters, multi-level converters, motor drive systems, microgrids and other power and power electronic systems.

Detailed Highlights
  • Support GOOSE and other industrial communication protocols

    It supports Modbus TCP/RTU, CAN, Ethernet TCP/ UDP, GOOSE, serial port and other general industrial protocols, which provides the necessary communication for renewable energy farm control applications such as PV array ring network, and energy storage system testing applications such as primary FM.

  • Superb single CPU-core computing capability

    Equipped with an 8-Core 3.8 GHz super CPU processor, it can support IEEE 39-bus standard system simulation with a processing time of 22us. (the system consists of 35 three-phase nodes, 7 three-phase motors and 17 distributed parameter lines.)

  • Multiple CPU cores parallel simulation capability

    Optional Equipped with 8 cores of 3.8GHz CPU, It can supports 15 CPU Cores for real-time computing and running in different timesteps, which can meet the applications of flexible DC transmission simulation, regional power grid simulation and so on.

  • Rich and configurable IO interfaces

    A single device can support 96DI and 48AO, and the number of IO can be configured by the user; thus assisting users in completing the simulation of large-scale power electronic system testing with a single device.

Support GOOSE and other industrial communication protocols
Superb single CPU-core computing capability
Multiple CPU cores parallel simulation capability
Rich and configurable IO interfaces
Technical Parameters
Model
FPGA
Analog Input
  • Model
    MT 8020
  • Processor
    8-Core Intel Xeon, 3.8GHz
  • Memory
    32GB DDR4 SDRAM
  • FPGA
    1,451K System Logic Cells, 75.9Mb Block RAM, 5,520 DSP Slices
  • Analog Output
    Up to 48 channels, 16bit, 1MSPS, ±10V
  • Analog Input
    16 channels,16bit,1MSPS,±10V
  • Digital Input
    Up to 96 channels, Wide Range of Voltages
  • Digital Output
    32 channels
  • Communication
    Modbus TCP/RTU, CAN, Ethernet TCP/UDP, GOOSE, Serial , 8 SFP+
  • Dimension
    480mm*533mm*279mm(L*W*H)
Application Scenarios
Renewable Energy
Renewable Energy

Wind Power Converter Testing

PV Inverter Testing

Multiple PCS Testing

Renewable Energy
Renewable Energy

Wind Power Converter Testing

PV Inverter Testing

Multiple PCS Testing

Power System& Micro-grid
Power System& Micro-grid

Microgrid Research

Green Hydrogen Microgrid Simulation

Renewable Energy Farm Simulation

Power Hardware in the Loop Testing

Power System& Micro-grid
Power System& Micro-grid

Microgrid Research

Green Hydrogen Microgrid Simulation

Renewable Energy Farm Simulation

Power Hardware in the Loop Testing

Multi-level System
Multi-level System

Modular Multi-level Converter Simulation

High Voltage Converter(HVC) Simulation

Static Var Generation(SVG) Simulation

Multi-level System
Multi-level System

Modular Multi-level Converter Simulation

High Voltage Converter(HVC) Simulation

Static Var Generation(SVG) Simulation

Electrified Transportation
Electrified Transportation

Electric Motor Drive Controller Testing

Traction Motor Testing

Electrified Transportation
Electrified Transportation

Electric Motor Drive Controller Testing

Traction Motor Testing
