MT 6060 Simulator
Mid-end Performance
  • CPU
    CPU
    6-Core Intel Xeon, Base Frequency of 3.3GHz
  • FPGA
    FPGA
    Xilinx KU115
  • Customized I/O
    Customized I/O
    Up to 96 digital inputs, 48 analog outputs
  • Fiber Optic Expansion
    Fiber Optic Expansion
    8-channel SFP+ 10Gbps
MT 6060 Simulator
MT 6060 Simulator

MT 6060 Simulator is an industrial-grade real-time simulator independently developed by ModelingTech. It is equipped with a powerful Intel Xeon CPU and Xilinx UltraScale FPGA. It is the cost-effective choice for users who have simultaneous demand for CPU simulation capability and FPGA simulation capability.

Detailed Highlights
  • Powerful FPGA Simulation Capability

    Equipped with the new-generation UltraScale KU115 for high-performance computing in real-time and parallel, it provides safe and efficient testing tools for industrial large-system devices such as multi-inverters and multi-level systems (MMC/SVG/HVC).

  • Rich configurable IO interfaces

    A single device can support 96DI and 48AO, and the number of IO can be configured by the user; thus assisting users in completing the simulation of large-scale power electronic system testing with a single device.

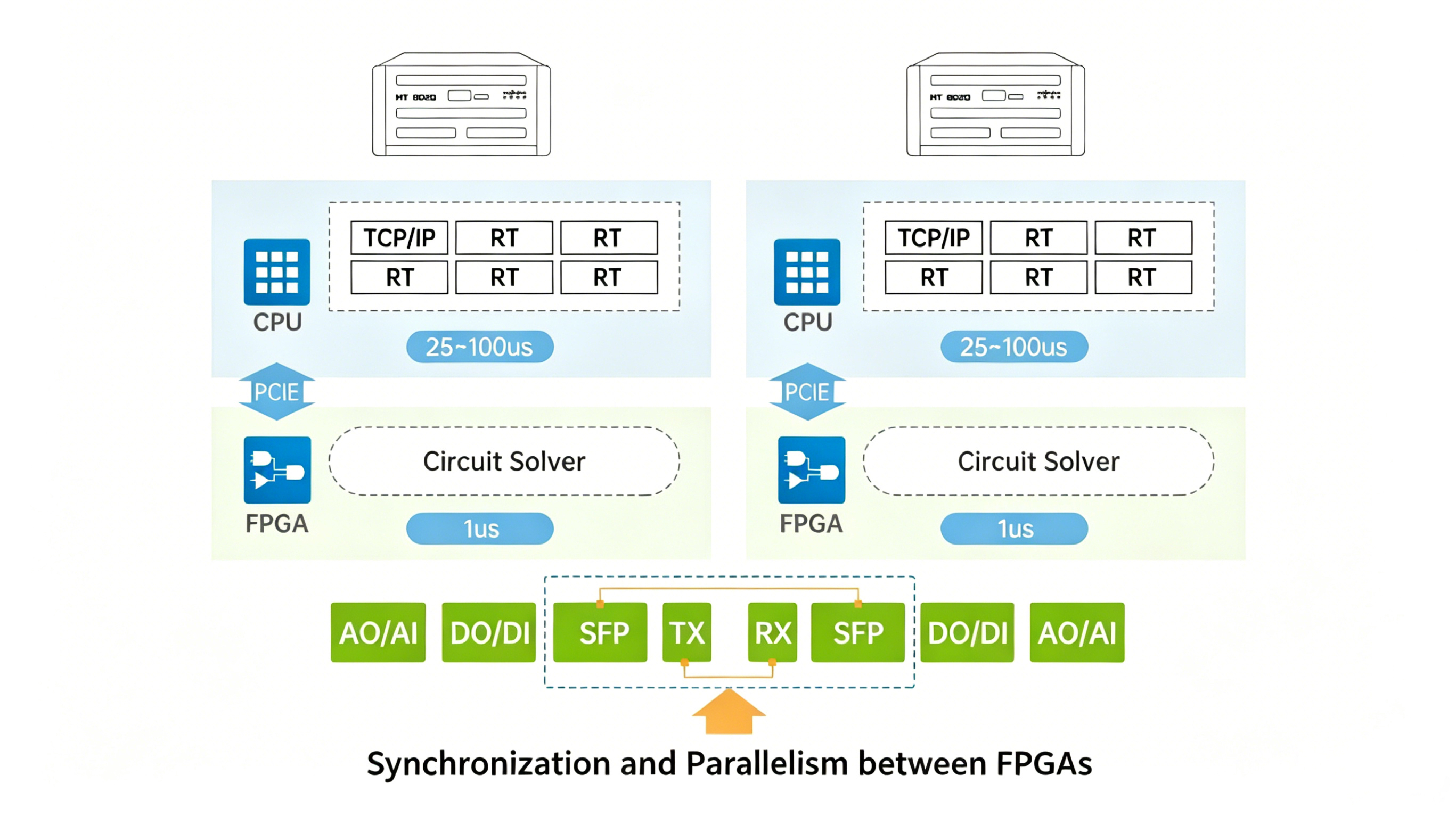

  • Powerful parallel capability via optical fiber

    Equipped with 8 SFP+ optical fiber, to meet the higher requirements of equipment manufacturers for large-scale system testing, multi-device cascaded testing.

Powerful FPGA Simulation Capability
Rich configurable IO interfaces
Powerful parallel capability via optical fiber
Technical Parameters
Model
FPGA
Dimension
  • Model
    MT 6060
  • Processor
    6-Core Intel Xeon, Base Frequency of 3.3GHz
  • Memory
    32GB DDR4 SDRAM
  • FPGA
    1451K System Logic Cells, 75.9Mb Block RAM,5520 DSP Slice
  • Analog Output
    Up to 48 channels, 16bit, 1MSPS, ±10V
  • Analog Input
    16 channels,16bit,1MSPS,土10V
  • Digital Input
    Up to 96 channels, Wide Range of Voltages
  • Digital Output
    32 channels
  • Communication
    Modbus TCP/RTU, CAN, Ethernet TCP/UDP, GOOSE, Serial, 8 SFP+
  • Dimension
    480mm*533mm*235mm(L*W*H)
Application Scenarios
Renewable Energy
Renewable Energy

Wind Power Converter Testing

PV Inverter Testing

Multiple PCS Testing

Renewable Energy
Renewable Energy

Wind Power Converter Testing

PV Inverter Testing

Multiple PCS Testing

Power System& Micro-grid
Power System& Micro-grid

Microgrid Research

Green Hydrogen Microgrid Simulation

Renewable Energy Farm Simulation

Power Hardware in the Loop Testing

Power System& Micro-grid
Power System& Micro-grid

Microgrid Research

Green Hydrogen Microgrid Simulation

Renewable Energy Farm Simulation

Power Hardware in the Loop Testing

Multi-level System
Multi-level System

Modular Multi-level Converter Simulation

High Voltage Converter(HVC) Simulation

Static Var Generation(SVG) Simulation

Multi-level System
Multi-level System

Modular Multi-level Converter Simulation

High Voltage Converter(HVC) Simulation

Static Var Generation(SVG) Simulation

Electrified Transportation
Electrified Transportation

Electric Motor Drive Controller Testing

Traction Motor Testing

Electrified Transportation
Electrified Transportation

Electric Motor Drive Controller Testing

Traction Motor Testing
