MT 6020 Simulator
Entry-level Performance
  • CPU
    CPU
    ARM Cortex-A9 800MHz
  • FPGA
    FPGA
    ZYNQ-7100
  • Customized I/O
    Customized I/O
    64DI,24AO
  • Fiber Optic Expansion
    Fiber Optic Expansion
    4-channel SFP+ 10Gbps
MT 6020 Simulator
MT 6020 Simulator

MT 6020 Simulator is an entry-level real-time simulator independently developed by ModelingTech. It uses FPGAs as the computing core and can simulate controlled objects in time steps as small as 1μs. It creates a safe testing environment for users to quickly verify control algorithms and test under fault conditions, which dramatically improves the efficiency of new product&technology pre-research, control algorithm optimization and product iterative testing.

Detailed Highlights
  • Innovative Hardware Architecture

    Adopting the hardware architecture of CPU+FPGA, it supports users to realize the joint simulation of power system and power electronic system with large and small timesteps on the same platform.

  • Rich industrial communications

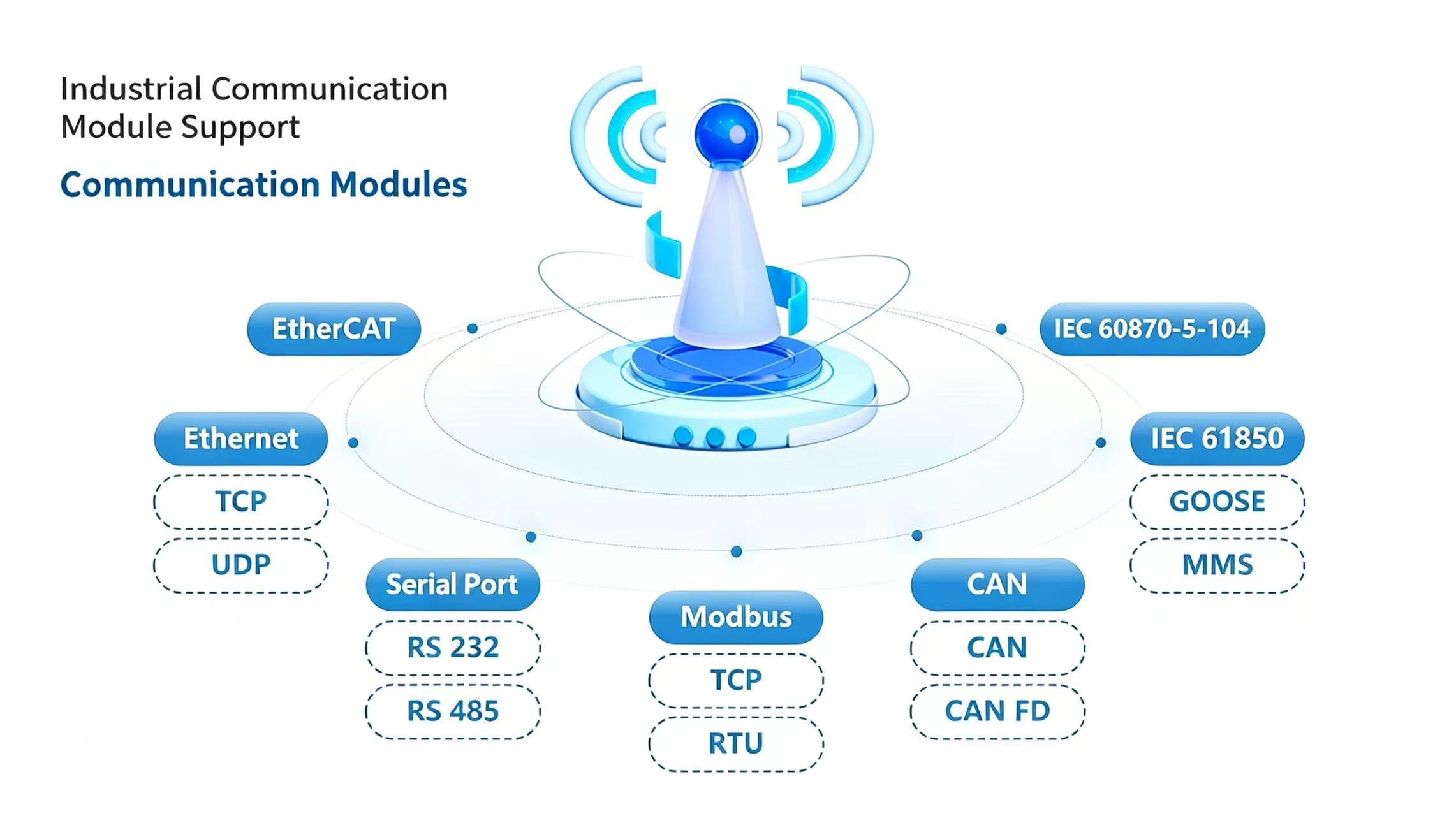

    Supporting a lot of industrial communication protocols such as Modbus TCP, CAN, Ethernet TCP/UDP, Serial, which assists engineers in the actual industrial inverter testing.

Innovative Hardware Architecture
Rich industrial communications
Technical Parameters
Model
FPGA
Dimension
  • Model
    MT 6020
  • Processor
    Dual-core ARM Cortex-A9,Clock Speed 800MHz
  • Memory
    2GB DDR4 SDRAM
  • FPGA
    444K logic units, 26.5Mb Block RAM, 2020 DSP Slices
  • Analog Output
    24 channels,16bit,1MSPS,土10V
  • Analog Input
    16 channels,16bit,1MSPS,土10V
  • Digital Input
    64 channels
  • Digital Output
    16 channels
  • Communication Interface
    Modbus TCP, CAN, Ethernet TCP/UDP, Serial, 4 SFP+
  • Dimension
    307mm*335mm*134mm(L * W * H)
Application Scenarios
Renewable Energy
Renewable Energy

Wind Power Converter Testing

PV Inverter Testing

Multiple PCS Testing

Renewable Energy
Renewable Energy

Wind Power Converter Testing

PV Inverter Testing

Multiple PCS Testing

Power System& Micro-grid
Power System& Micro-grid

Microgrid Research

Green Hydrogen Microgrid Simulation

Renewable Energy Farm Simulation

Power Hardware in the Loop Testing

Power System& Micro-grid
Power System& Micro-grid

Microgrid Research

Green Hydrogen Microgrid Simulation

Renewable Energy Farm Simulation

Power Hardware in the Loop Testing

Multi-level System
Multi-level System

Modular Multi-level Converter Simulation

High Voltage Converter(HVC) Simulation

Static Var Generation(SVG) Simulation

Multi-level System
Multi-level System

Modular Multi-level Converter Simulation

High Voltage Converter(HVC) Simulation

Static Var Generation(SVG) Simulation

Electrified Transportation
Electrified Transportation

Electric Motor Drive Controller Testing

Traction Motor Testing

Electrified Transportation
Electrified Transportation

Electric Motor Drive Controller Testing

Traction Motor Testing
